Peugeot 2008: Driving / Active Blind Spot Monitoring System

Peugeot 2008 2019-2021 Owner's Manual / Driving / Active Blind Spot Monitoring System

Refer to the General recommendations on the use of driving and manoeuvring aids.

Peugeot 2008. Active Blind Spot Monitoring System

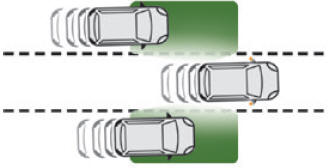

This system includes sensors, placed on the sides of the bumpers, and warns the driver of the potentially dangerous presence of another vehicle (car, truck, motorcycle) in the blind spot areas of their vehicle (areas hidden  from  the driver's field of vision).

Peugeot 2008. Active Blind Spot Monitoring System

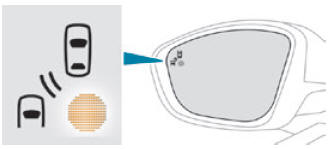

The warning is given by a fixed warning lamp that appears in the door mirror on the side in question:

  • immediately, when being overtaken;
  • after a delay of about one second, when overtaking a vehicle slowly.

In addition to this alert, a correction of trajectory will be felt if you attempt to cross a line with the direction indicator activated, to help you avoid a collision.

Activation / Deactivation

Peugeot 2008. Active Blind Spot Monitoring System It is set via the Driving  / Vehicle touch screen menu.

When starting the vehicle, the warning lamp comes on in each mirror to indicate that the system is activated.

The state of the system stays in the memory when switching off the ignition.

Peugeot 2008. Active Blind Spot Monitoring System The system is automatically deactivated when towing with a towing device approved by PEUGEOT.

Conditions for operation

  • All vehicles are moving in the same direction and in adjacent lanes.
  • The speed of the vehicle must be between 7 and 87 mph (12  and 140  km/h) for the alert and between 40 and 87 mph (65 and 140 km/h) for a correction of trajectory.
  • The system must be activated to trigger a change of trajectory.
  • When you overtake a vehicle with a speed difference of less than 6  mph (10  km/h).
  • When another vehicle overtakes you with a speed difference of less than 16  mph (25  km/h).
  • Traffic is flowing normally.
  • Overtaking a vehicle over a certain period of time and the vehicle being overtaken remains in the blind spot.
  • You are driving on a straight or slightly curved road.
  • Your vehicle is not pulling a trailer, a caravan, etc.

Operating limits

Peugeot 2008. Active Blind Spot Monitoring System

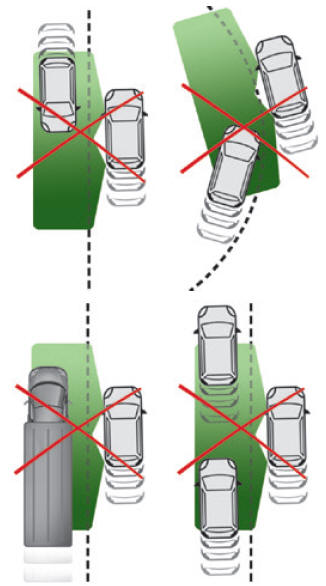

No alert will be given and no correction will be made in the following situations:

  • In the presence of non-moving objects (parked vehicles, barriers, street lamps, road signs, etc.).
  • Oncoming traffic.
  • Driving on a winding road or a sharp corner.
  • When overtaking or being overtaken by a very long vehicle (lorry, bus, etc.) which is both detected in the rear blind spot and present in the driver’s front field of vision.
  • When overtaking quickly.
  • In very heavy traffic: vehicles detected in front and behind are confused with a lorry or a stationary object.
  • If the Park Assist or Full Park Assist function is activated.

Malfunction

Peugeot 2008. Active Blind Spot Monitoring System If the event of a malfunction, this warning lamp comes on in the instrument panel, accompanied by the display of a message.

Contact a PEUGEOT dealer or a qualified workshop to have the system checked.

Peugeot 2008. Active Blind Spot Monitoring System The system may suffer temporary interference in certain weather conditions (rain, hail, etc.).

In particular, driving on a wet surface or moving from a dry area to a wet area can cause false alerts (for example, the presence of a fog of water droplets in the blind spot angle is interpreted as a vehicle).

In bad or wintry weather, ensure that the sensors are not covered by mud, ice or snow.

Take care not to cover the warning zone in the door mirrors, or the detection zones on the front and rear bumpers with adhesive labels or other objects; they may hamper correct operation of the system.
