Peugeot 2008: Practical information / Engine compartment

Peugeot 2008 2019-2026 Owner's Manual / Practical information / Engine compartment

The engine shown here is an example for illustrative purposes only.

The locations of the following elements may vary:

  • Air filter.
  • Engine oil dipstick.
  • Engine oil filler cap.

Petrol engine

Peugeot 2008. Engine compartment

Diesel engine

Peugeot 2008. Engine compartment

  1. Screenwash fluid reservoir
  2. Engine coolant reservoir
  3. Brake fluid reservoir
  4. Battery/Fuses
  5. Remote earth point (-)
  6. Fusebox
  7. Air filter
  8. Engine oil filler cap
  9. Engine oil dipstick

Peugeot 2008. Engine compartment The Diesel fuel system operates under very high pressure.

All work on this circuit must be carried out only by a PEUGEOT dealer or a qualified workshop.

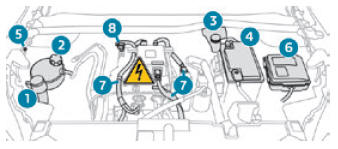

Electric motor

Peugeot 2008. Engine compartment

  1. Screenwash fluid reservoir
  2. Engine coolant reservoir
  3. Brake fluid reservoir
  4. Battery / Fuses
  5. Remote earth point (-)
  6. Fusebox
  7. 400  V electrical system
  8. Emergency circuit-breaker for firefighters and maintenance technicians

For more information on the Charging system (Electric), refer to the corresponding section.

    Bonnet

    Stop & Start Before doing anything under the bonnet, you must switch off the ignition to avoid any risk of injury resulting from an automatic change to START mode...

    Checking levels

    Check all of the following levels regularly in accordance with the manufacturer's service schedule. Top them up if required, unless otherwise indicated...
