Peugeot 2008: Indicators / Engine coolant temperature indicator

Peugeot 2008 2019-2024 Owner's Manual / Instruments / Indicators / Engine coolant temperature indicator

Peugeot 2008. Engine coolant temperature indicator

With the engine running:

In zone A, the temperature is correct.

In zone B, the temperature is too high; the associated warning lamp and the central STOP warning lamp come on in red on the instrument panel, accompanied by the display of a message and an audible signal.

You must stop the vehicle as soon as it is safe to do so.

Wait a few minutes before switching off the engine.

Peugeot 2008. Engine coolant temperature indicator After switching off the ignition, carefully open the bonnet and check the coolant level.

Peugeot 2008. Engine coolant temperature indicator For more information on Checking levels, refer to the corresponding section.

AdBlue® range indicators (BlueHDi)

The Diesel BlueHDi engines are equipped with a system that associates the SCR (Selective Catalytic Reduction) emissions control system and the Diesel particle filter (DPF) for the treatment of exhaust gases. They cannot function without AdBlue® fluid.

When the level of AdBlue® falls below the reserve level (between 1,500 and 0 miles (2,400 and 0  km)), a warning lamp lights up when the ignition is switched on and an estimate of the distance that can be travelled before engine starting is prevented is displayed in the instrument panel.

Peugeot 2008. Engine coolant temperature indicator The engine starting prevention system required by regulations is activated automatically once the AdBlue® tank is empty.

It is then no longer possible to start the engine until the minimum level of AdBlue® has been topped up.

Manual display of the range

While the driving range is greater than 1,500 miles (2,400  km), it is not displayed automatically.

Peugeot 2008. Engine coolant temperature indicator You can view the range information by pressing the "Check" button  in the  Driving/Vehicle  touch screen  menu.

Actions required related to a lack of AdBlue®

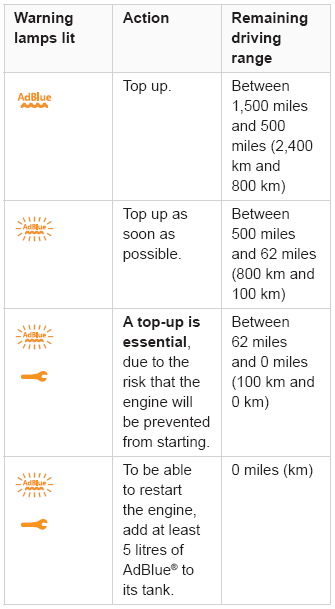

The following warning lamps light up when the quantity of AdBlue® is lower than the reserve level corresponding to a range of 1,500 miles (2,400 km).

Together with the warning lamps, messages regularly remind you of the need to top up to avoid engine starting being prevented. Refer to the Warning and indicator lamps section for details of the messages displayed.

Peugeot 2008. Engine coolant temperature indicator For more information on AdBlue® (BlueHDi engines), and in particular on topping up, refer to the corresponding section.

Peugeot 2008. Engine coolant temperature indicator

Malfunction of the SCR emissions control system

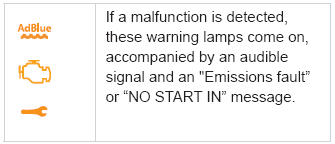

Malfunction detection

Peugeot 2008. Engine coolant temperature indicator

The alert is triggered while driving, when the fault is detected for the first time, and thereafter when switching on the ignition for subsequent journeys, while the cause of the fault persists.

Peugeot 2008. Engine coolant temperature indicator If the fault is temporary, the alert disappears during the next journey, after self-diagnostic checks of the SCR emissions control system.

Malfunction confirmed during the permitted driving phase (between 685 miles and 0  miles (1,100 km and 0 km))

If the fault indication is still displayed permanently after 31 miles (50  km) of driving, the fault in the SCR system is confirmed.

The AdBlue warning lamp flashes, and an "Emissions fault: Starting prevented in X miles" or "NO START IN X miles" message is displayed, indicating the driving range in miles or kilometres.

While driving, the message is displayed every 30 seconds. The alert is repeated when switching on the ignition.

You can continue driving for up to 685 miles (1,100  km) before the engine immobiliser system is triggered.

Peugeot 2008. Engine coolant temperature indicator Have the system checked by a PEUGEOT dealer or a qualified workshop as soon as possible.

Starting prevented

Whenever the ignition is switched on, the "Emissions fault: Starting prevented" or "NO START IN" message is displayed.

Peugeot 2008. Engine coolant temperature indicator To be able to restart the engine, contact a PEUGEOT dealer or a qualified workshop.

    Engine oil level indicator

    (Depending on version.) On versions fitted with an electric gauge, the engine oil level status is displayed on the instrument panel for a few seconds when the ignition is switched  on, after the servicing information...

    Power indicator (Electric)

    CHARGE Traction battery charging during deceleration and braking. ECO Moderate energy consumption and optimised driving range. POWER Energy consumption by the drive train during acceleration...
